Peak Heating and Cooling Load Calculations: A Room-by-Room Guide
A practical guide to turning floor-plan geometry, envelope data, weather, people and outdoor air into reviewable room-level HVAC loads.
Q = UAΔT + Qair + Qgains

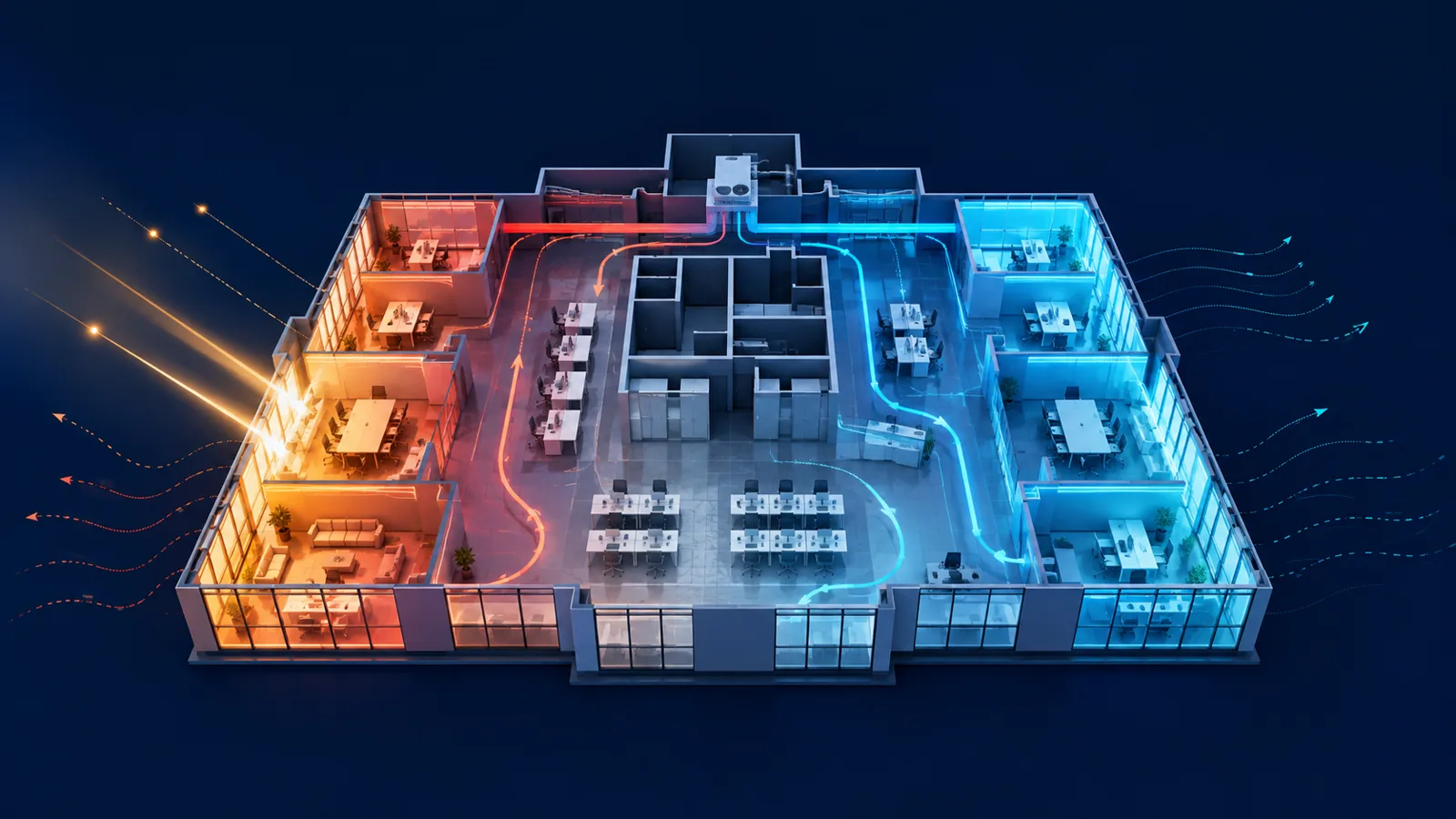

Peak Heating and Cooling Load Calculations: A Room-by-Room Guide
Original MEPFlow engineering guide
Prepared to help mechanical designers understand the calculation, assumptions and review checks. Examples are original and educational; verify the governing code, project criteria and equipment data before using a result for construction or permit documents.
Peak heating and cooling load calculations estimate the capacity an HVAC system must deliver when the building is exposed to its selected winter and summer design conditions. A useful result is not simply a building area multiplied by a rule of thumb. It is a transparent balance of heat transfer through the envelope, solar exposure, outdoor air, infiltration and internal gains for each space.
Room-by-room calculations matter because two spaces with the same floor area can peak very differently. A west-facing conference room may be driven by afternoon sun and occupants, while an interior storage room may have almost no envelope cooling load. Treating both rooms as identical can distort air distribution and terminal-unit sizing even when the whole-building total looks reasonable.
What a peak load calculation is—and is not
A heating load is the rate of heat that must be added to hold the indoor heating setpoint at the chosen winter design condition. A cooling load is the rate at which sensible and latent heat must be removed to hold the summer temperature and humidity targets. The word peak refers to the greatest calculated rate over the design condition or design-day sequence—not the building's annual energy use.
Peak load and annual energy simulation answer different questions. Peak load supports capacity and airflow decisions. Annual simulation estimates energy use over many weather hours and operating schedules. A preliminary design-day estimator can be very useful for option studies, but it should not be presented as a substitute for the calculation method required by the project, code or authority having jurisdiction.
Engineering scope
MEPFlow's current Loads module is a simplified hourly design-day estimator for preliminary room and block loads. It is not certified Manual J software and does not replace HAP, IES VE, TRACE or a required code-compliance model.
The room-level inputs that change the answer
A defensible model makes every important assumption visible. Geometry establishes surface areas and room volume. Construction data establishes heat-transfer rates. Weather and orientation determine the boundary conditions. Space use establishes internal and outdoor-air loads.
| Input group | Typical inputs | Why it matters |
|---|---|---|
| Geometry | Floor area, ceiling height, exposed wall length | Sets wall, roof, floor and room-volume quantities |
| Envelope | Wall/roof/floor R-values, window U-value and SHGC | Controls conductive and solar heat gain or loss |
| Weather | Winter dry-bulb, summer dry-bulb and wet-bulb | Sets sensible and moisture differences across the envelope and outdoor air |
| Space use | People, lights, equipment and schedules | Adds sensible and latent internal heat |
| Air exchange | Ventilation rate and infiltration | Adds heating, sensible cooling and latent cooling load |
| Orientation | North angle and glazing direction | Changes the timing and magnitude of solar gain |
Exterior walls, interior partitions and adjacent rooms
An exterior wall separates a conditioned room from outdoor conditions. An interior partition separates it from another zone or room. Those surfaces should not use the same temperature difference. If both adjacent rooms are held near the same setpoint, heat transfer through their shared wall is small. If one side is unconditioned or maintained at a different temperature, the partition load can be significant.
A floor-plan model can identify adjacency geometrically. When two traced rooms share the same edge, that edge becomes an interior boundary. Edges with no adjacent room remain exterior. The designer should still review the classification because a shaft, vestibule, parking area or unconditioned tenant space may require a different boundary condition than a normal conditioned room.
Q = U × A × ΔT
For steady conductive heat transfer, load is the assembly U-value multiplied by exposed area and the temperature difference across that specific boundary. The correct ΔT depends on what is actually on the other side.
Sensible, latent and coincident cooling peaks
Sensible cooling changes air temperature. Latent cooling removes moisture. People, ventilation and infiltration can contribute to both. Lights and most plug loads are primarily sensible. Window solar gain is sensible, but its room peak depends on orientation, time of day and how the calculation treats heat storage in the space.
Individual rooms do not necessarily peak at the same hour. Adding every room's independent maximum creates a noncoincident total that can overstate the central cooling plant requirement. A coincident block result evaluates all rooms at the same hour and identifies the greatest combined total. Both values are useful: room peaks help size terminals and air distribution, while the coincident block peak informs central-system capacity.
- Review sensible and latent cooling separately before selecting airflow or equipment.
- Check the reported peak hour for rooms with large east, south or west glazing.
- Compare the sum of room peaks with the coincident block peak instead of assuming they are identical.
A repeatable room-by-room workflow
The fastest workflow is the one that preserves a clear link between the drawing and the assumptions. That reduces repeated area takeoffs and makes it easier to find why a room changed after a partition, window or construction update.
1. Calibrate the plan
Use a known dimension so traced lengths and areas represent the building.
2. Trace the conditioned outline
Create the exterior geometry first, then partition it into rooms so shared walls are recognized.
3. Review boundaries and openings
Confirm exterior versus interior walls, then place windows and doors on the correct exposed segments.
4. Assign room conditions
Set heating and cooling setpoints, height, people, lighting, equipment, ventilation and infiltration.
5. Apply envelope data
Use project-specific assemblies where available; label preliminary assumptions clearly when they are not.
6. Calculate and quality-check
Review component breakdowns, peak hour, airflow and coincident totals before carrying results into system sizing.
Common load-calculation mistakes
Most poor results are caused by assumptions, not arithmetic. A model can calculate precisely from the wrong inputs. The quality-control pass should therefore focus on boundary conditions, units and quantities before debating the final decimal place.
- Using outdoor design temperature across every interior partition.
- Applying whole-building people and lighting densities to storage or support rooms without review.
- Entering window area twice or assigning glazing to the wrong orientation.
- Adding ventilation and infiltration without checking whether the assumed rates overlap.
- Sizing central cooling from the sum of noncoincident room peaks.
- Treating a preliminary result as a permit-ready or standards-compliant calculation without professional review.
Frequently asked questions
What is the difference between heating load and heat loss?
In common HVAC design usage, peak heating load is the rate of heat the system must add to offset envelope, outdoor-air and infiltration losses at the winter design condition. Heat loss describes the losses that create that requirement.
Why calculate loads room by room?
Room calculations capture different exposures, glazing, occupancy and internal gains. They support terminal airflow, diffuser, duct and zone-equipment decisions that a single whole-building load cannot resolve.
Do interior walls add heating and cooling load?
They can. Transfer depends on the construction, area and temperature difference between adjacent spaces. Between similarly conditioned rooms the load is usually small; next to an unconditioned or differently controlled space it may matter.
Does the hottest outdoor temperature always create the cooling peak?
Not necessarily. Solar timing, internal gains and moisture can shift the peak. A west-facing room may peak later than the maximum outdoor dry-bulb hour.
